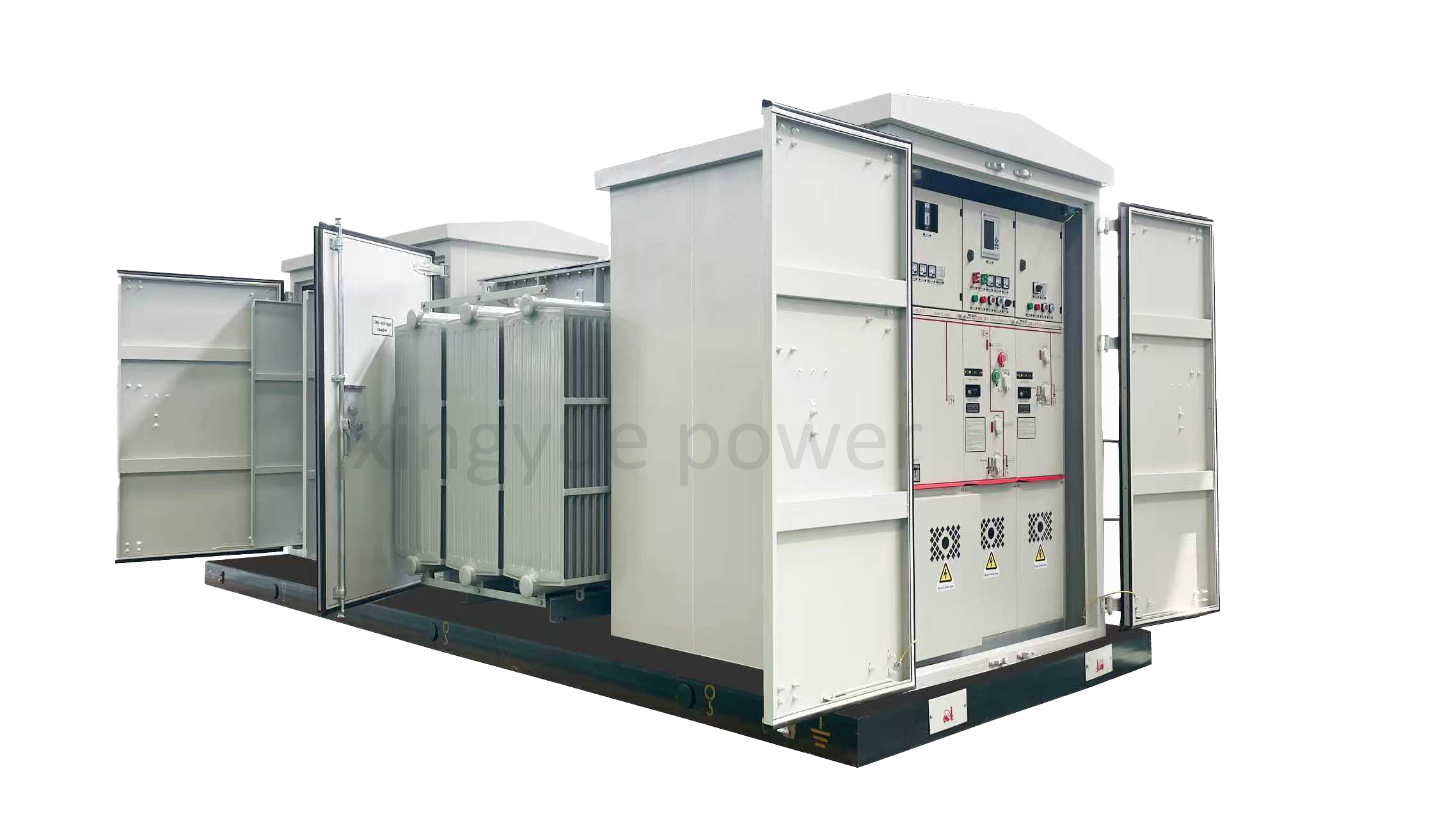

PV substation is a prefabricated high/low voltage substation integrating a step-up transformer, high-voltage switchgear, low-voltage switchgear, and corresponding auxiliary equipment.
It operates at voltage levels of 35kV and below, with a capacity range of 200~2500kVA.
It is primarily suitable for the new energy industry.
Product features
|
Feature Category |
Detailed description |
|
Structural layout |
The transformer is arranged in a triangular or rectangular pattern, divided into a high-voltage compartment, a low-voltage compartment, and the transformer itself. The transformer is usually placed outside the enclosure to dissipate heat through natural climate. |
|
High voltage unit |
Options include vacuum load switch-fuse combination appliances, vacuum circuit breakers, or C-GIS (gas-insulated switchgear). |
|
Low voltage unit |
The equipment uses GGD AC low-voltage switchgear and is arranged in a hierarchical, functional, and compartmentalized manner. |
|
Transformer |
Most are oil-immersed transformers with a wide capacity range. Some products employ stepped joints or wound core technology to reduce no-load losses and noise. |
|
Enclosure and Protection |
The enclosure is made of heavy-duty steel plates with an anti-corrosion coating. The high and low voltage compartments have an IP54 protection rating, while the transformer compartment has an IP68 rating, effectively protecting against rain, snow, dust, and corrosion. |
|
Safety and Reliability |
The busbar connection ensures high reliability. A gas relay is installed to provide light gas alarm and heavy gas protection. The isolating blade, arc-extinguishing chamber, and fuse of the high-voltage switch can be placed in separate compartments for easy maintenance. |
Specification
|
High-pressure chamber |
Item |
Unit |
Parameter |
||
|
Rated frequency |
Hz |
50 /60Hz |
|||
|
Rated voltage |
kV |
12.47kV 13.2kV 13.8kV 14.4kV 19.92KV |
22.9kV |
34.5kV |
|
|
Maximum voltage |
kV |
7.2kV |
12KV , 24KV |
40.5KV |
|
|
Rated current |
A |
400，630，1000，1250，1600，2000，2150，... ect |
|||
|
Transmission current |
A |
1200 -3150 A |
|||
|
Rated short-circuit breaking current |
KA |
20, 31.5 |
|||
|
Transformer chamber |
Rated voltage |
kV |
3.3kV、6.0kV、6.6kV |
10KV 11KV 13.8KV 15KV 20KV 22kv |
30KV 33KV 35KV 36KV |
|
Rated power capacity |
KVA |
200 KVA-2.5 MVA |
|||
|
Tapping Range |
% |
± 2 X 2.5%，± 5% |
|||
|
Connection Symbol |
|
Yyn0, Dyn11 |
|||
|
Short-circuit impedance |
% |
4.0 , 4.2, 4.5, 6, 8 |
|||
|
Low pressure chamber |
Rated voltage |
|
220, 380, 400, 415, 433, 440, 660, 690,800 |
||
|
Rated current of main circuit |
A |
50 -4000 |
|||
|
Branch current |
A |
5-800 |
|||
|
Case |
Protection level |
||||
|
High-pressure chamber |
|
IP33，ip65 |
|||
|
Low pressure chamber |
|
IP33 |
|||
|
Transformer chamber |
|
IP23 |
|||
|
noise level |
dB |
≤ 50 |
|||
